Studio Software

Akrometrix Studio is an advanced software package integrated to run on all Akrometrix Warpage Systems and offers users the capability to set up various custom warpage characteristic measurements.

Profile Generator: (Create Temperature Profiles)

  • Create thermal profiles graphically; ‘click’ to add temperature points and actions
  • Assign ramp rates, soak times and cool down periods using numerical settings
  • Set machine control action points by clicking on profile segments
    • Measurement points
    • Blower on/off points
    • Exhaust on/off points

Surface Measurement: (Measurement Setup)

  • Work from a live system view to setup multiple test parameters
  • Run multiple phase image and 3D measurement results windows concurrently
  • View displacement graphs and data when data is acquired
  • Work with multiple regions of interest
  • DIC, DFP, CRE6, and SRM modules integrate seamlessly into the same workflow
  • Includes Part Tracking and Real Time Analysis (RTA) features

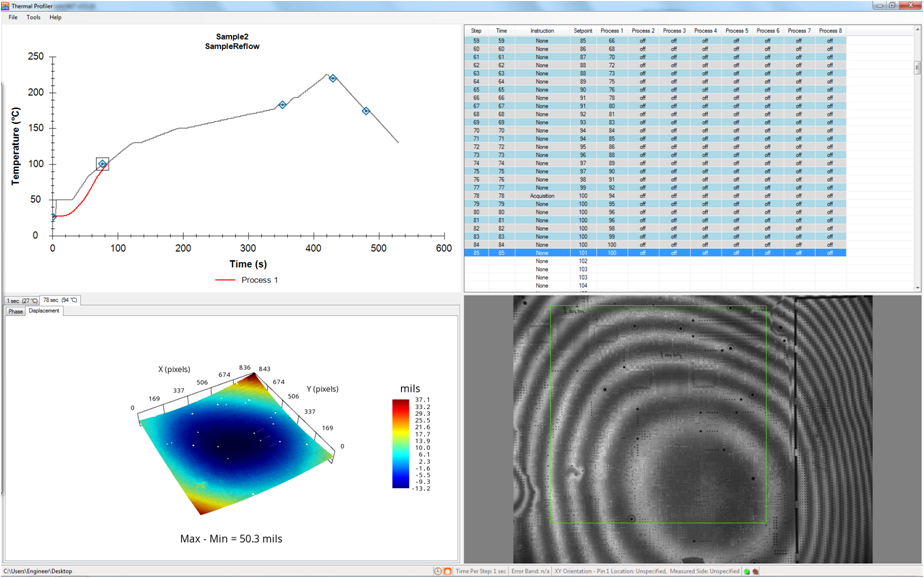

Thermal Profiler: (Measure warpage over temperature)

  • Apply test setup from Surface Measurement over temperature
  • Load profiles from Profile Generator
  • Optimize thermal conditions: error band, heater power, lower while heating, etc.
  • Immediate results feedback during profiling

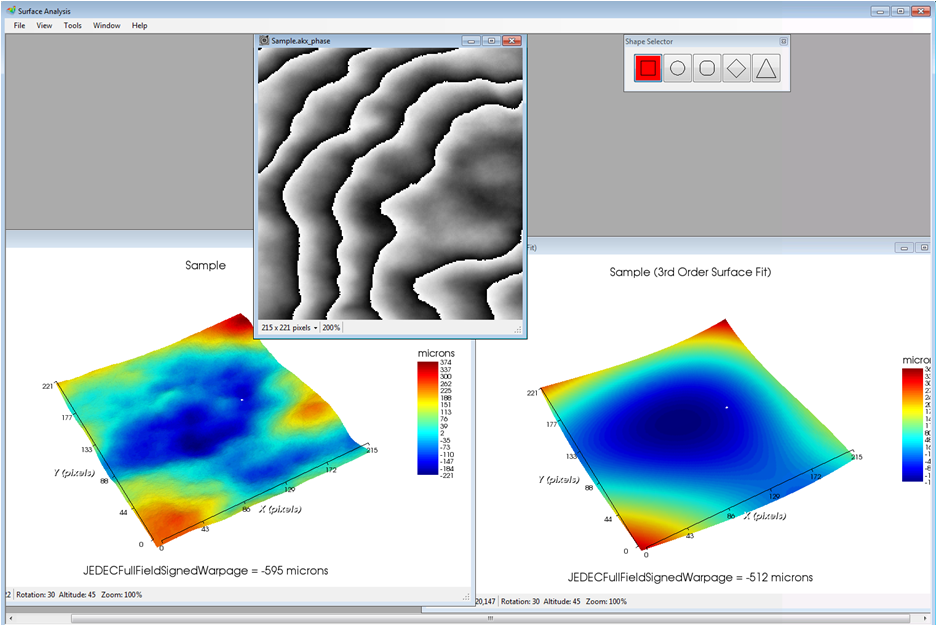

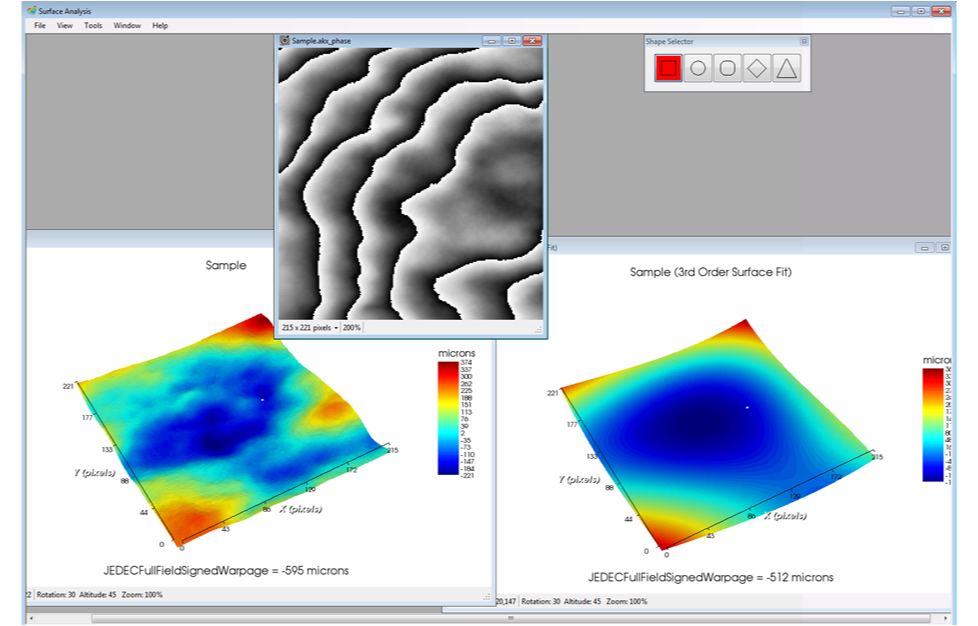

Surface Analysis: (In-depth data processing)

  • One off:
    • Analyze and compare 2D and 3D data sets
    • View up to 5 million displacement data points on each graph
    • Control multiple graphs on-screen at once
    • Mask areas and burn masks permanently into phase images
    • Calculate one displacement data set relative to another
    • Export data for further analysis into computational applications such as ANSYS and MATLAB
    • Draw 2D chord lines across phase images at any angle
    • Zoom, rotate, crop and export 3D displacement graphs in multiple formats
  • Batch Processing:
    • All one off operations available in batch processing
    • Apply masks, filters, chords, rotation and other operations to hundreds of phase or displacement data sets
    • Multiple output and export options for graphical and analytical analyses
    • Quickly report on hundreds of data sets utilizing Automated Report Generator
    • Export data for use in Interface Analysis
