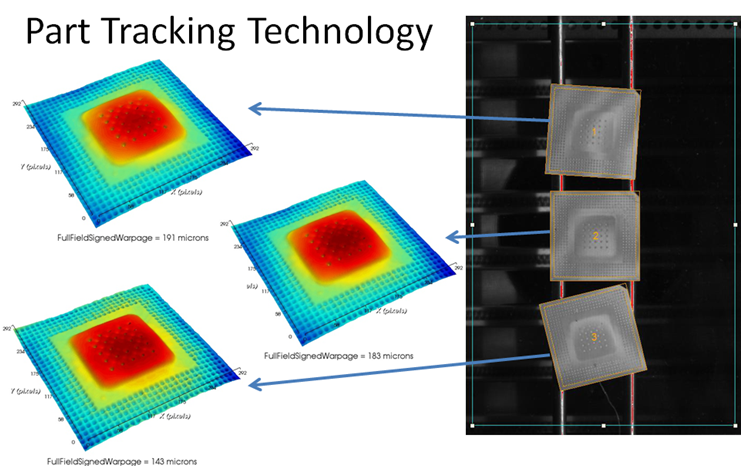

PART TRACKING

The capability to measure all samples independently within the system’s field of view and automatically Locate, Crop, and Rotate the measured Samples

Part Tracking Technology is a software feature included in Akrometrix Surface Measurement that increases system throughput while reducing user to user and system to system measurement variation. Part Tracking uses edge recognition technology to locate a part in space and automatically crop/rotate the sample for processing of the found surface area.

  • Increase system throughput by reducing setup time
  • Improve run to run repeatability
  • Improve system to system and user to user reproducibility
  • Comes standard with all shadow moiré tools

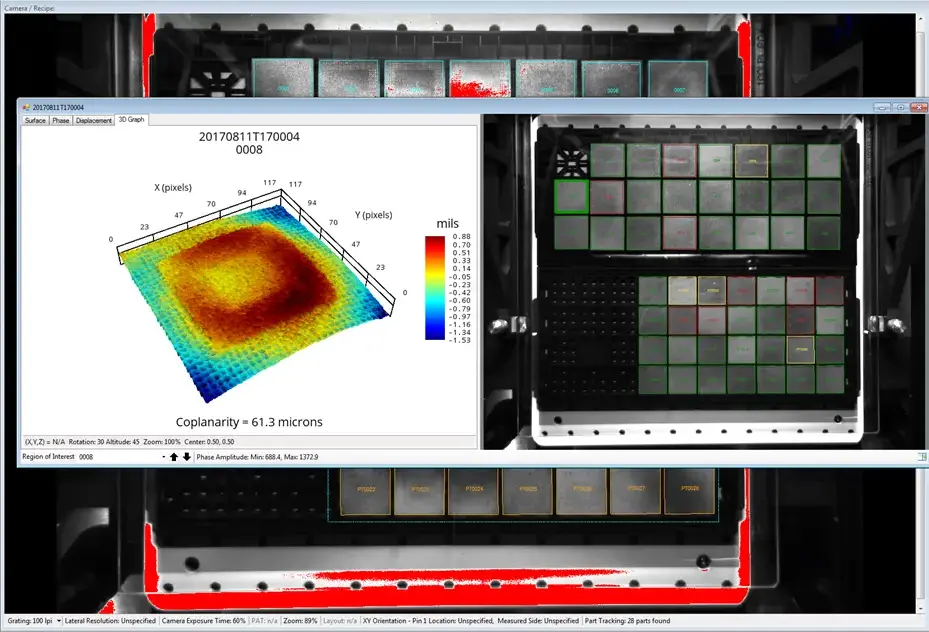

REAL TIME ANALYSIS

Pass/Warning/Fail Decision making capabilities within Akrometrix Studio Software included with all Warpage Systems.

Real Time Analysis (RTA) takes user input pass, warning, and failure gauge limits and gives immediate feedback on the region or regions that pass or fail. RTA is designed to scale to high volume applications, taking the analysis steps out of warpage measurements and going straight to decisions.

  • Scales to hundreds of regions measured in only 2 seconds
  • Gives tabular and visual output to users immediately after measurement
  • RTA settings can be combined and saved in recipes for up front processing and ease of use
