Solving Tomorrow's Problems Today

Nufesa Labs is proud to introduce Thermal Warpage Testing Services, utilizing the Akrometrix AXP 2.0 Thermal Warpage System with Shadow Moiré Vision Technology, to the European Market

Lab Services, Training Courses & ESD Audits

Lab Services: X-rays, cross sections, solderability testing, stress testing, ionic contamination testing (ROSE), SIR, SEM-EDX, 3D microscopy, XRF.

PCB repair and rework, alloy conversion, electric testing, flash memory testing, BGA reballing, component retinning, etc. with our

Assembly protection according to IPC norms.

C3/Ionic chromotography testing with FORESITE technology.

Personalized training courses according to customer needs.

Thermal Warpage and Strain Metrology analysis of PCBs and components using AXP 2.0 technology from AKROMETRIX

Advising on electronic solering, assembly protection, contamination protection, etc.

Over 50 Years of Expertise

Founded in 1979, our know-how in soldering, adhesion and PCB protection in circuit boards has helped us become a reference in the sector for quality products and expert technical assistance from our in-house laboratories specialised in failure analysis of PCBs and PCBAs.

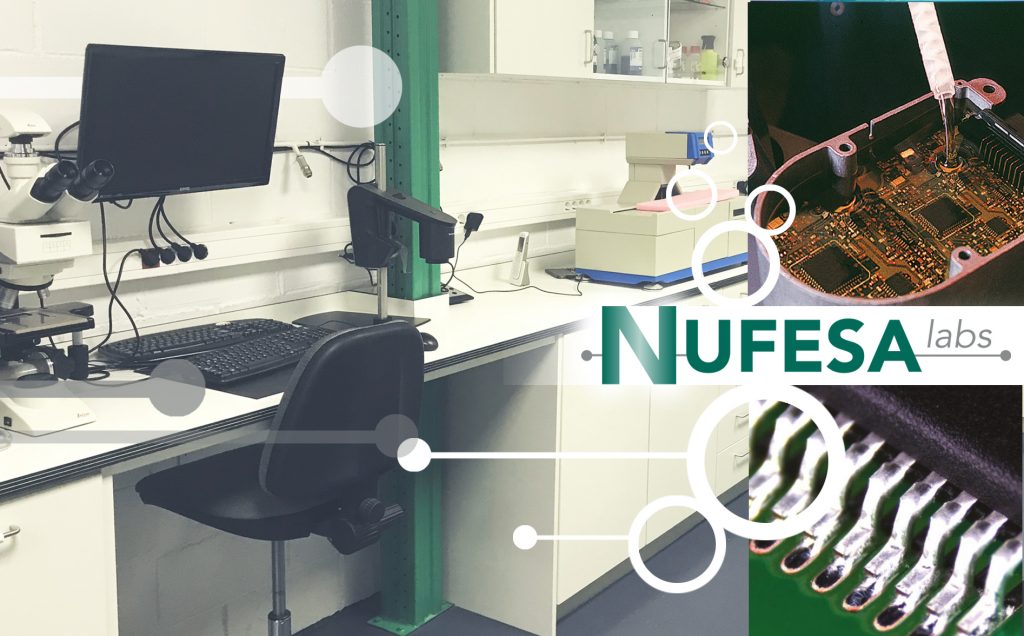

In 2021, we moved our facilities to a new location in Palau-Solitá y Plegamans to meet the needs of our growing business and create two state of the art laboratories.
